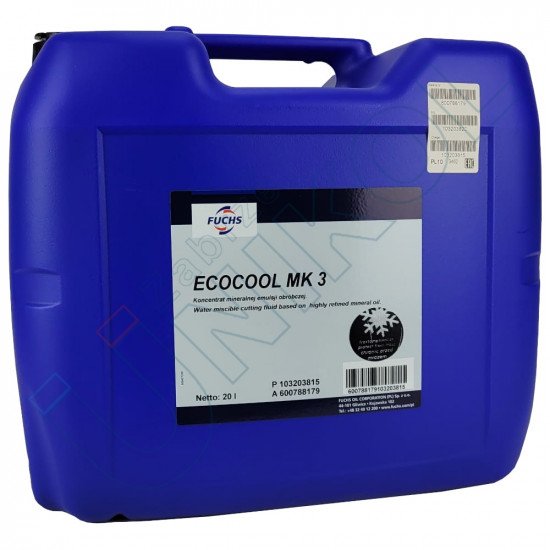

ECOCOOL MK 3

Soluble cutting oil

Description

ECOCOOL MK 3 is specially compounded emulsifying

cutting oil composed of petroleum oil and special

emulsifiers. It mixes readily with hot or cold water. It

forms homogeneous and exceptionally stable emulsions

that show no apparent separation after long periods of

usage or storage.

Application

Metal cutting and grinding operations generate heat. The

prime requirement therefore, is to select a fluid that

reduces heat generation and increases its dissipation. The

effectiveness with which this is accomplished has a direct

bearing on increasing feed, speed, tool life, and improving

surface finish. An efficient and economical way to control

heat is to use the excellent cooling properties of an

emulsion. Additionally, an effective cutting and grinding

fluid must contain anti corrosion properties to protect the

work piece during the manufacturing process. Another

characteristic which enhances its usefulness is stability,

whether in use or in storage.

ECOCOOL MK 3 emulsions are the preferred choice for

grinding and for machining operations where cooling is of

the utmost importance. It meets the basic application

requirements described above in a highly satisfactory and

economical manner.

ECOCOOL MK 3 is usually used in an oil to water ratio

ranging from 1:10 to 1:60.

Because there are so many variables to be considered

from job-to-job, it is impractical to make a specific

recommendation of optimum oil to water ratios.

However, in general the richer emulsions are used for

the more difficult jobs, the intermediate for the free machining

metals and the lean mixtures are used for

such operations such as grinding, where massive

cooling is required. Care to be taken for the quality of

water. Ideal hardness of water for preparing the

emulsion is 125ppm.

ECOCOOL MK 3 is specially inhibited to give it

effective anti - corrosion properties. It will prevent

corrosion of both ferrous and non-ferrous machined

metal parts. Work pieces machined with such

emulsions ordinarily need no further corrosion

protection during subsequent handling or

manufacturing processes because the thin film protects

for a suitable period.

The properties of ECOCOOL MK 3 permit production

of clean work, excellent surface finish and minimum

tool wear. When used as a grinding coolant, emulsion

will contribute to long wheel life, accurate tolerances

and superior finish.

When preparing emulsions of ECOCOOL MK 3 and

water, always add oil to water. Stability of the emulsion

is enhanced when it is put through a homogenization

process.

ECOCOOL MK-3 containers should be stored under

cover out of sunlight, in well ventilated conditions.

Preferable storage period is 6 months(maximum). It is

not recommended to store the emulsion.
